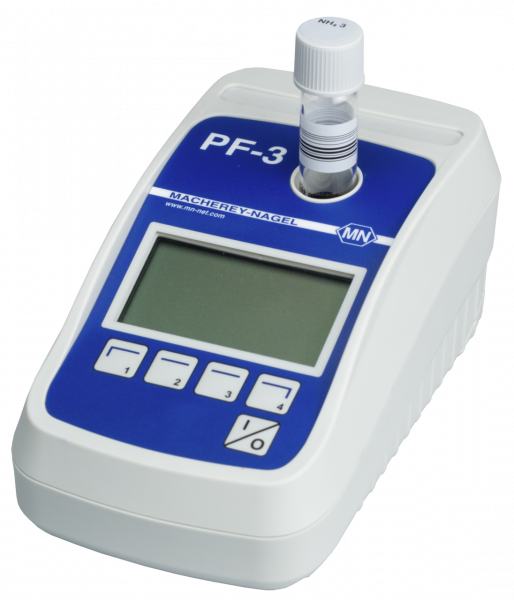

Compact photometer PF‑3 Fish, in box

Preview: Compact photometer PF‑3 Fish, in box Preview: Compact photometer PF‑3 Fish, in box
Compact photometer PF‑3 Fish, in box
Compact photometer PF‑3 Fish, in box

Contact us for more information $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 919345 0120261300
Package unit 1 Piece(s)
Quantity:
Do you have any questions?
Please contact us.
Technical data Safety data sheets Downloads
Technical data
The compact photometer PF‑3 Fish is the smallest member of the MACHEREY‑NAGEL photometer family.... more
Close menu

The compact photometer PF‑3 Fish is the smallest member of the MACHEREY‑NAGEL photometer family. The Fish version is especially designed for the need of aqua culture water analysis. It supports measurements of Ammonium, Chlorine, Iron, Silica, Copper, Nitrate, Nitrite, pH, Phosphate and Oxygen. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis.

Type LED photometer with microprocessor control, self-test and auto calibration
Light source LED
Optical system LED + interference filters
Wavelength 450 nm / 530 nm / 660 nm
Wavelength accuracy ± 2 nm, bandwidth at half transmission 10 nm–12 nm
Preprogrammed tests NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows
Cuvette slot Round tubes 16 mm OD
External light Insensitive to external light, fast measurements without cuvette slot cover
Data memory 50 measurements
Display Backlit graphic display, 128 x 64 pixel
Auto off Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min
Operation Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists
Interfaces Mini-USB
Update Free via internet / PC
Operating range 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing)
Power supply 3 AA batteries, rechargeable batteries, USB interface; optional internal accu-pack
Housing Shock-resistant; waterproof and dustproof, according to IP 68
Weight 0.5 kg
CE certified Yes
Scope of delivery Photometer, manual, batteries and certificate
Gross weight (incl. packaging) 844 g / 1.86 lbs
Packaging dimensions 263 x 222 x 86 mm / 10.35 x 8.74 x 3.39 Inch
Hazardous material No
Safety data sheets
Close menu
919345_en-EN_GHS.pdf
Downloads
Close menu
Learn more
Learn more
Close menu
Continue reading
Related products Accessories
Related products
VISOCOLOR Reagent case with PF‑3 Fish, without reagents VISOCOLOR Reagent case with PF‑3 Fish, without reagents
Content 1 Piece(s)
REF 934602
$
Colorimetric test kit VISOCOLOR ECO Ammonium 3, refill pack Colorimetric test kit VISOCOLOR ECO Ammonium 3, refill pack
Content 50 Test(s)
REF 931208
$
Colorimetric test kit VISOCOLOR ECO Chlorine 6, free and total, refill pack Colorimetric test kit VISOCOLOR ECO Chlorine 6, free and total, refill pack
Content 200 Test(s)
REF 931217
$
Colorimetric test kit VISOCOLOR ECO Copper, refill pack Colorimetric test kit VISOCOLOR ECO Copper, refill pack
Content 100 Test(s)
REF 931237
$
Colorimetric test kit VISOCOLOR ECO Iron 1, refill pack Colorimetric test kit VISOCOLOR ECO Iron 1, refill pack
Content 200 Test(s)
REF 931225
$
Colorimetric test kit VISOCOLOR ECO Iron 2, refill pack Colorimetric test kit VISOCOLOR ECO Iron 2, refill pack
Content 100 Test(s)
REF 931226
$
Colorimetric test kit VISOCOLOR ECO Nitrate, refill pack Colorimetric test kit VISOCOLOR ECO Nitrate, refill pack
Content 110 Test(s)
REF 931241
$
Colorimetric test kit VISOCOLOR ECO Nitrite, refill pack Colorimetric test kit VISOCOLOR ECO Nitrite, refill pack
Content 120 Test(s)
REF 931244
$
Colorimetric test kit VISOCOLOR ECO Oxygen, refill pack Colorimetric test kit VISOCOLOR ECO Oxygen, refill pack
Content 50 Test(s)
REF 931288
$
Colorimetric test kit VISOCOLOR ECO pH 6.1–8.4, refill pack Colorimetric test kit VISOCOLOR ECO pH 6.1–8.4, refill pack
Content 150 Test(s)
REF 931270
$
Colorimetric test kit VISOCOLOR ECO Phosphate, refill pack Colorimetric test kit VISOCOLOR ECO Phosphate, refill pack
Content 80 Test(s)
REF 931284
$
Colorimetric test kit VISOCOLOR ECO Silica, refill pack Colorimetric test kit VISOCOLOR ECO Silica, refill pack
Content 80 Test(s)
REF 931233
$
Accessories 4
Reagent case for compact photometer PF‑3, without photometer and reagents Reagent case for compact photometer PF‑3, without photometer and reagents
Content 1 Piece(s)
REF 934101
$
Sample beaker 25 mL Sample beaker 25 mL
Content 1 Piece(s)
REF 914498
$
Reaction tubes 16 mm OD Reaction tubes 16 mm OD
Content 20 Piece(s)
REF 91680
$
Test instructions for VISOCOLOR Fish reagent case Test instructions for VISOCOLOR Fish reagent case
Content 1 Piece(s)
REF 933161
$
