The PF‑3 Drinking Water is the perfect tool for reliable and easy water analysis of drinking water. It combines all important measurements in one handy device. The reagent case is equipped with reagents for Chlorine (liquid DPD reagents), Chlorine dioxide, Iron, Fluoride and pH determinations. It also contains all necessary accessories for the measurements.
| Parameter | Chlor (frei), Chlor (gesamt), Chlordioxid, Eisen, Fluorid, pH |
| Parameter 1 | Chlor (frei) - Instrumental measuring range 0.05–2.00 mg/L Cl₂ / 150 Test(e) / REF 931215, VISOCOLOR ECO Chlorine 6, refill pack |
| Parameter 2 | Chlordioxid - Instrumental measuring range 0.20–3.80 mg/L / 150 Test(e) / REF 931221, VISOCOLOR ECO Chlorine dioxide, refill pack |
| Parameter 3 | Eisen - Instrumental measuring range 0.04–2.00 mg/L Fe / 100 Test(e) / REF 931226, VISOCOLOR ECO Iron 2, refill pack |
| Parameter 4 | Fluorid - Instrumental measuring range 0.1–2.0 mg/L F⁻ / 150 Test(e) / REF 931227, VISOCOLOR ECO Fluoride, refill pack |
| Parameter 5 | pH - Instrumental measuring range 6.1–8.4 / 150 Test(e) / REF 931270, VISOCOLOR ECO pH 6.1-8.4, refill pack |
| Parameter 6 | Chlor (gesamt) - Instrumental measuring range 0.05–2.00 mg/L Cl₂ / 150 Test(e) / REF 931215, VISOCOLOR ECO Chlorine 6, refill pack |
| Photometer included | PF-3 Drinking Water |
| Shelf life (from production) | 1.5 Year(s) |
| Storage temperature | 15–25 °C / 59–77 °F |

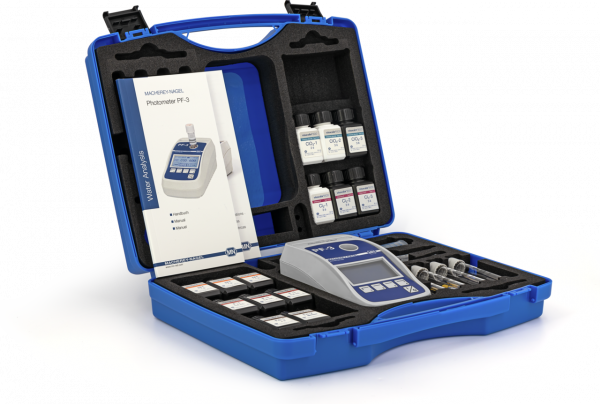

| Scope of delivery | Case, PF-3 Drinking Water, test kits, calibration cuvette, 4 empty tubes, beaker, 5 mL syringe, 3 batteries, manual, booklet, instructions and certificate |
| Gross weight (incl. packaging) | 2346 g / 5.17 lbs |
| Packaging dimensions | 385 x 306 x 180 mm / 15.16 x 12.05 x 7.09 Inch |
| Hazardous material | Yes |

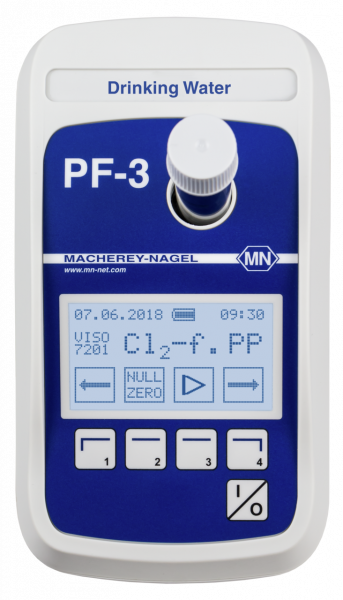

The handy and compact design makes this lightweight the ideal companion for mobile analysis. Its simple operation allows measurements within seconds. Besides the measurement accuracy, simplicity and user friendliness are key features of all MACHEREY‑NAGEL devices. The interaction of context-sensitive icons and only four
buttons guarantees a smart, clear and language-independent operation.
The centerpiece of the PF‑3 is its high-quality optic with the specially selected LEDs and corresponding interference filters. The unique “open slot” technology allows measurements without cuvette slot cover, thus emphasizing the high technical standard of the instrument. This yields into a simple and quick operation for the user, together with highly reliable results. MACHEREY‑NAGEL provides free PC software, for an even more comfortable operation. The software makes data management convenient, simple and efficient. Additionally it guarantees a forgery-proof data management.
The variable power supply is of particular convenience for the user and enables reliable measurements in all situations. Besides batteries and an accu-pack, the device can also be powered directly via an USB cable or a power adaptor.
Turbidity – a source of error: Turbidity is often underestimated since it is not always visually recognizable. During each measurement, the MACHEREY‑NAGEL spectrophotometers automatically measure the turbidity and warn the user in case of an interfering turbidity.
Technical data and online shopping
VISOCOLOR ECO tests, VISOCOLOR Powder Pillows and NANOCOLOR tube tests
compatible with the PF-3
The compact photometer PF‑3 is the smallest member of the MACHEREY‑NAGEL photometer family. The device completes our product portfolio and perfectly fits our tradition of reliability, user friendliness and innovation. The instrument comes in multiple versions, equipped with three LEDs and interference filters, designed to meet the analysis requirements of specific applications. Together with the approved VISOCOLOR ECO test kits, brandnew VISOCOLOR Powder Pillows and high quality NANOCOLOR tube tests from MACHEREY‑NAGEL, the PF‑3 is perfectly suited for mobile analysis directly at the place of sampling. Optionally, the device comes in a practical case with pre-equipped test kits, in a cardboard box or in an empty case for the individual combination with our VISOCOLOR ECO test kits.
