Spectrophotometer NANOCOLOR Advance

$4,212.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 919750 0120261300

Package unit 1 Piece(s)

Quantity:

Do you have any questions?

Please contact us.

The spectrophotometer NANOCOLOR Advance combines the most important features of our portable... more

Close menu

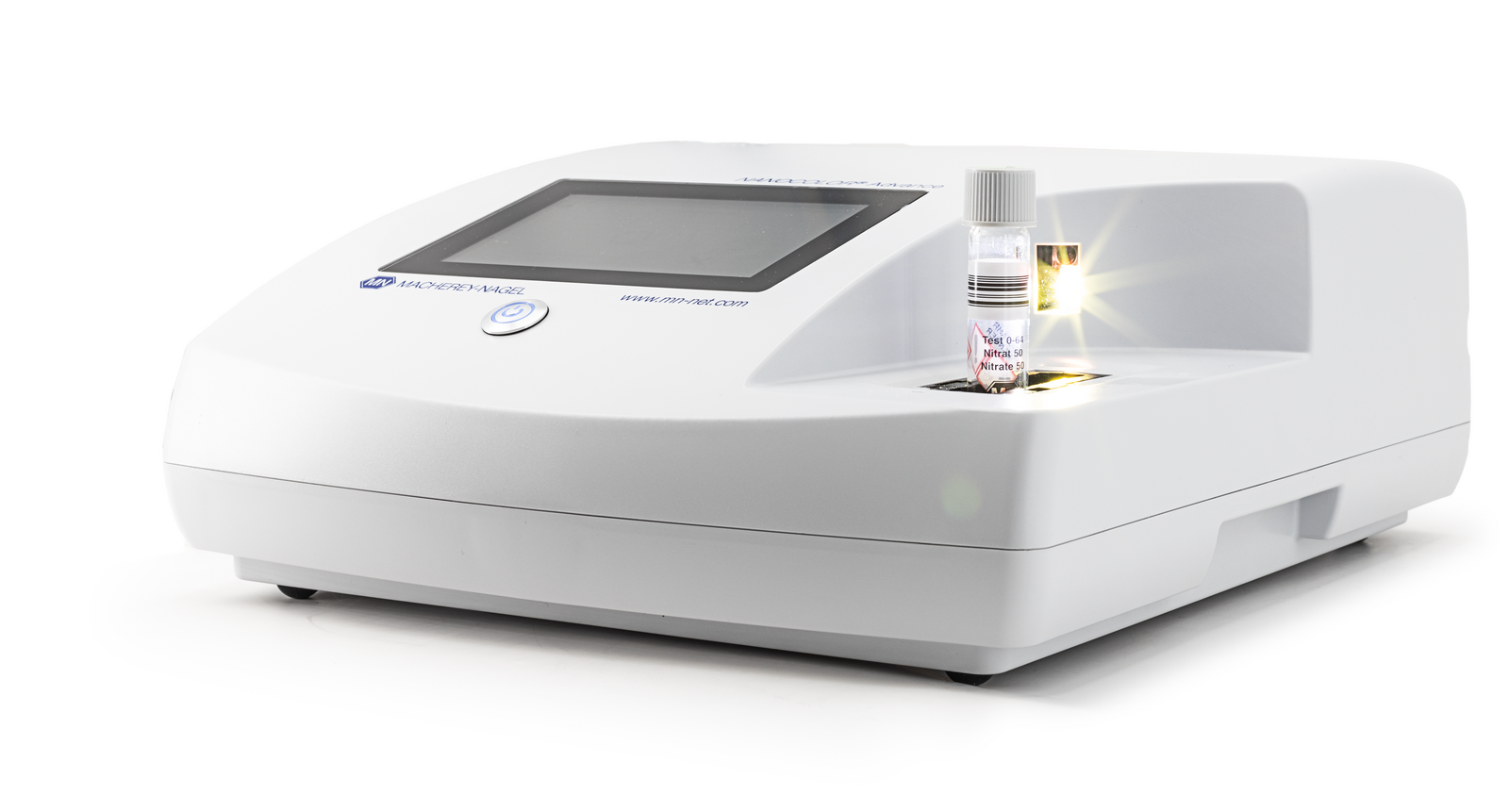

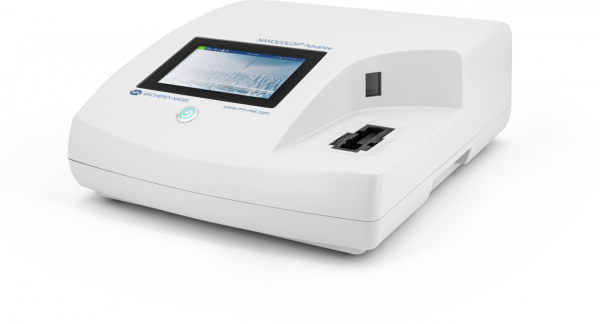

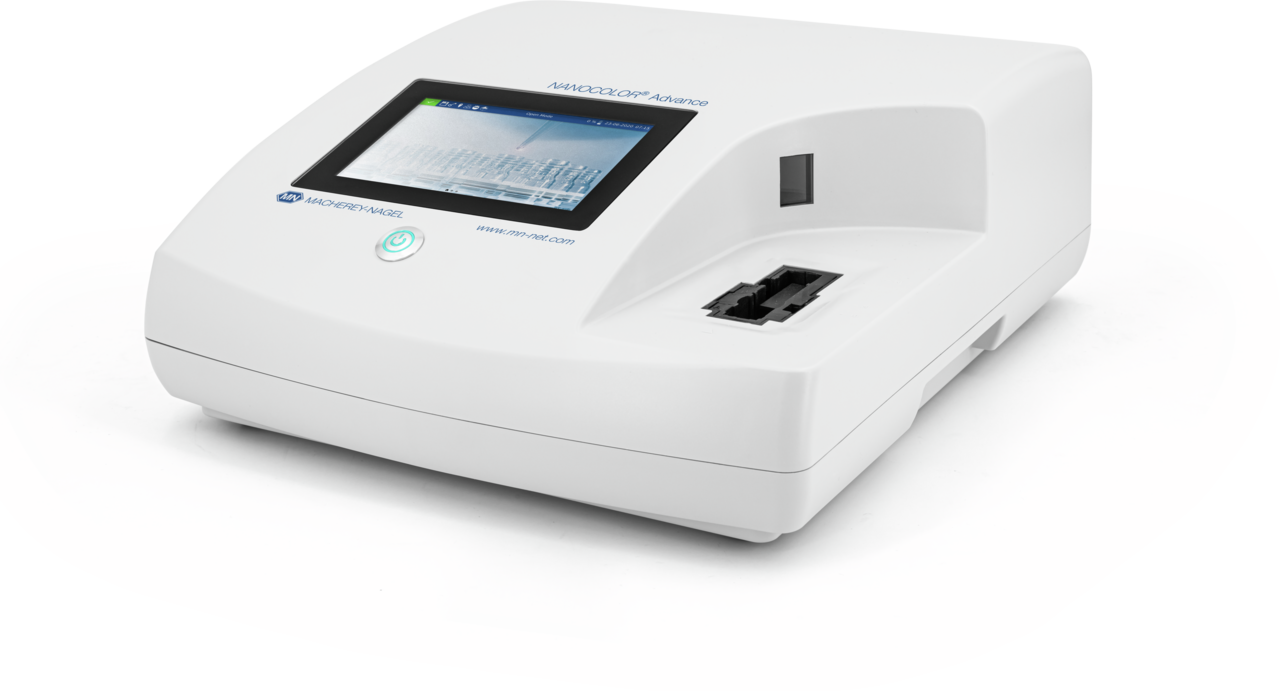

The spectrophotometer NANOCOLOR Advance combines the most important features of our portable compact photometer PF-12Plus and our high-precision spectrophotometer NANOCOLOR VIS II. It provides precise and reliable measurement results in the daily laboratory routine and can also be used mobile due to its rechargeable battery. With its wavelength spectrum of 340 - 800 nm it allows the measurement of all photometrically evaluable test kits from MACHEREY-NAGEL. The NANOCOLOR Advance can therefore be used universally in the entire spectrum of water and wastewater analysis.

Brand	NANOCOLOR
Type	Spectrophotometer with reference detector technology (RDT)
Light source	Halogen lamp
Optical system	Monochromator
Wavelength	340 nm–800 nm
Wavelength accuracy	± 2 nm
Wavelength resolution	1 nm
Wavelength reproducibility	± 0.1 nm
Wavelength calibration	Automatic
Wavelength selection	Automatic, Barcode, Manual
Scan speed	1 complete scan in less than 3 min
Spectral bandwidth	< 4 nm
Photometric range	+/- 3.0 E in the range 340–800 nm
Photometric accuracy	0.003 E at 0.0–0.5 E; 1% at 0.5–2.0 E
Photometric linearity	< 0.5 % at 0.5–2.0 E, ≤ 1% at > 2 E with neutral glass filters at 546 nm
Stray light	< 0.5 %
Measuring modes	More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; scan; nephelometric turbidity measurement
Preprogrammed tests	NANOCOLOR tube tests and standard tests, VISOCOLOR ECO test kits and Powder Pillows
Turbidity measurement	Nephelometric turbidity measurement (based on ISO 7027, 16 mm and 24 mm) 1–1000 NTU
Cuvette slot	Tube test 16 mm, 24 mm OD; Standard test 10 mm, 20 mm, 40 mm and 50 mm
External light	Insensitive to external light, fast measurements without cuvette slot cover
Data memory	1000 measurement results, 1000 IQC results, 100 scans; GLP‑conform
Display	Backlit colored 5" display with touch screen
Operation	Barcode technology, icon-based menu guidance, touch screen

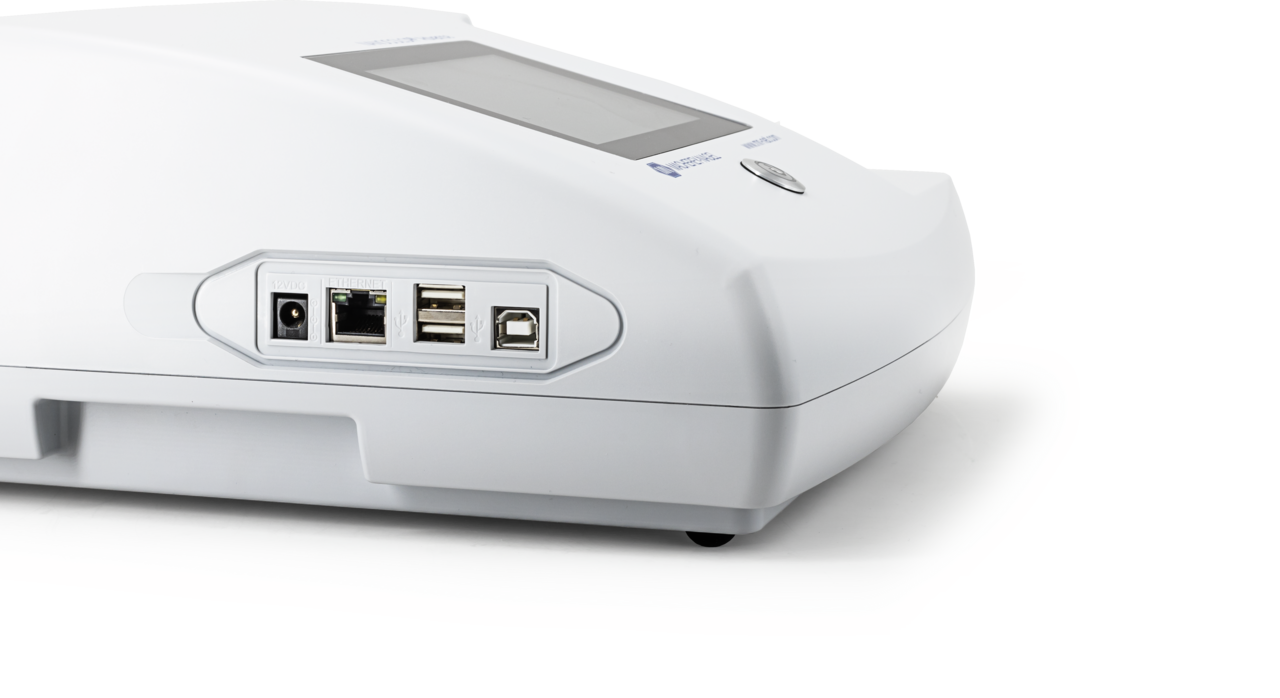

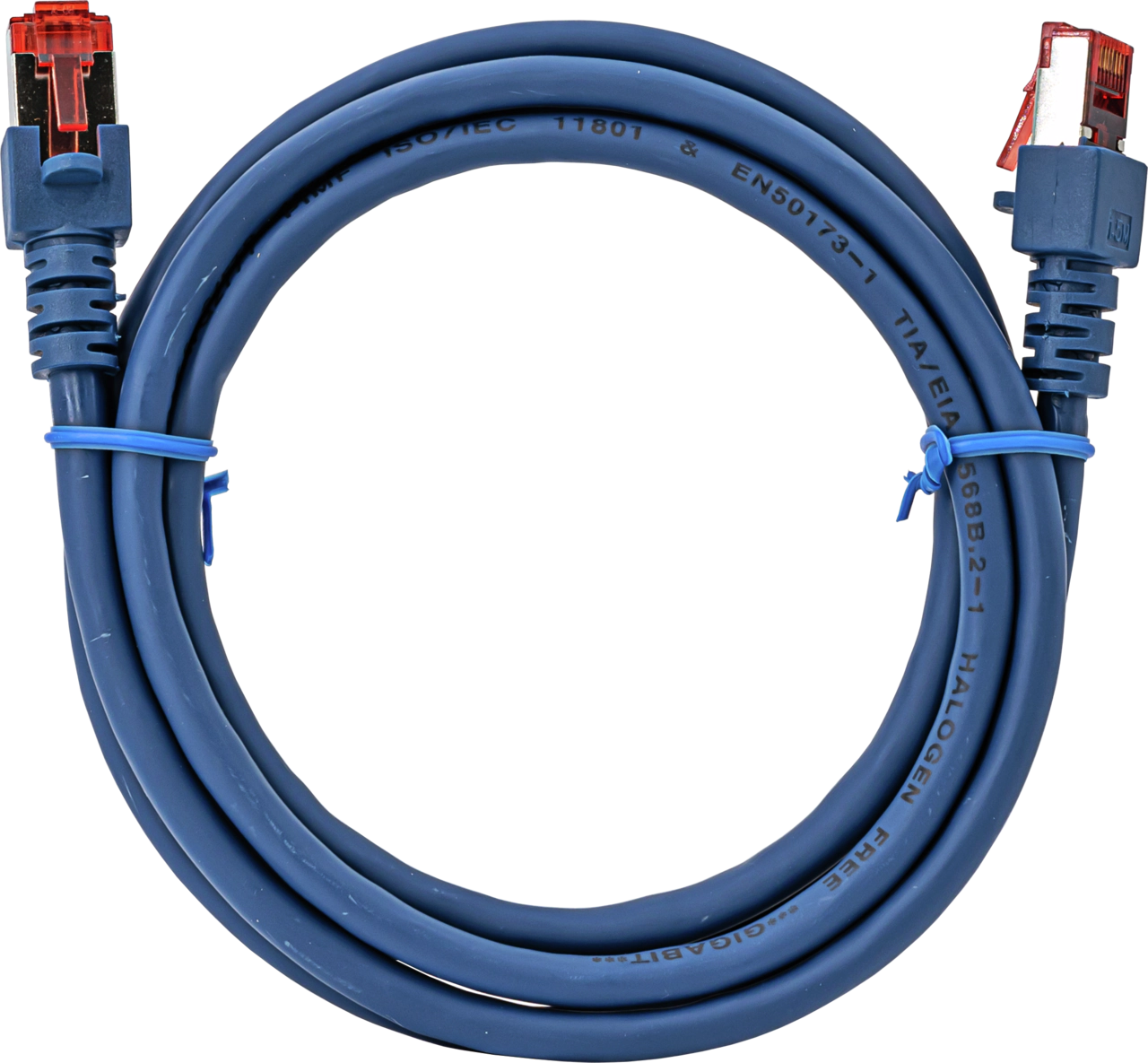

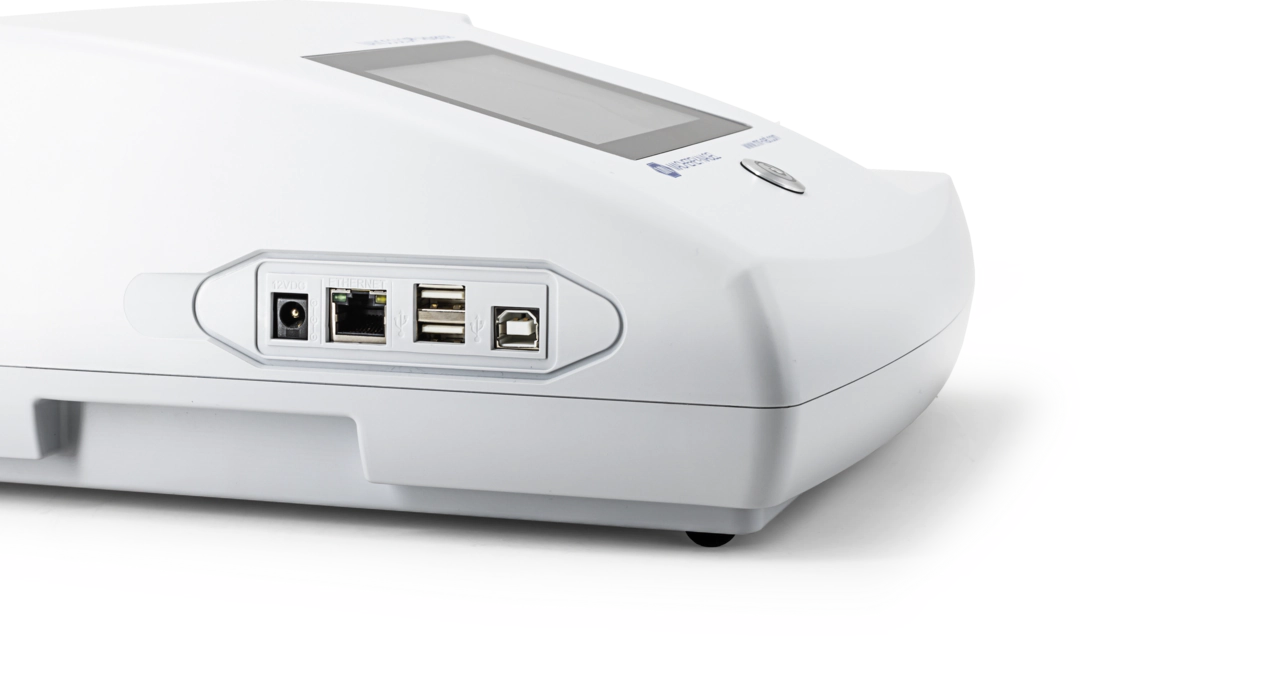

Interfaces	LAN (CAT 6, only use shielded cables with a maximum length of 20 m) 2 x USB (Host), 1 x USB (Function)
Update	Free via USB stick
Operating range	10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing)
Power supply	Input 110–240 V AC, Output 12 V 3A DC; 6,4 V, 7,2 Ah via built-in battery
Weight	3.8 kg
Warranty	2 Year(s)
CE certified	Yes

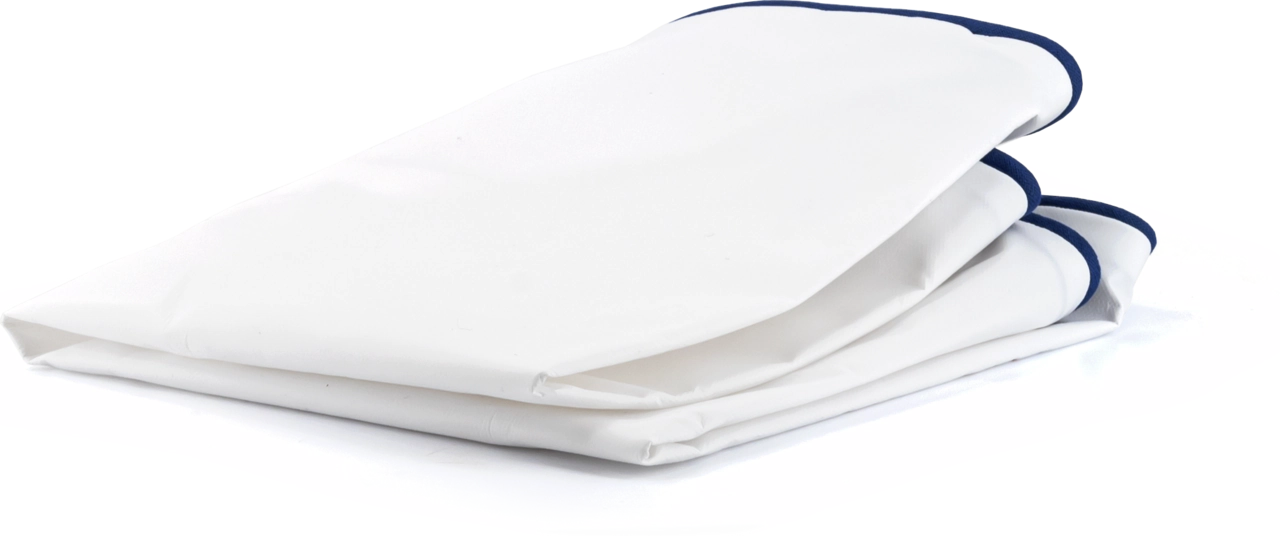

Scope of delivery	Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth
Gross weight (incl. packaging)	5100 g / 11.24 lbs
Packaging dimensions	400 x 370 x 190 mm / 15.75 x 14.57 x 7.48 Inch
Hazardous material	No
