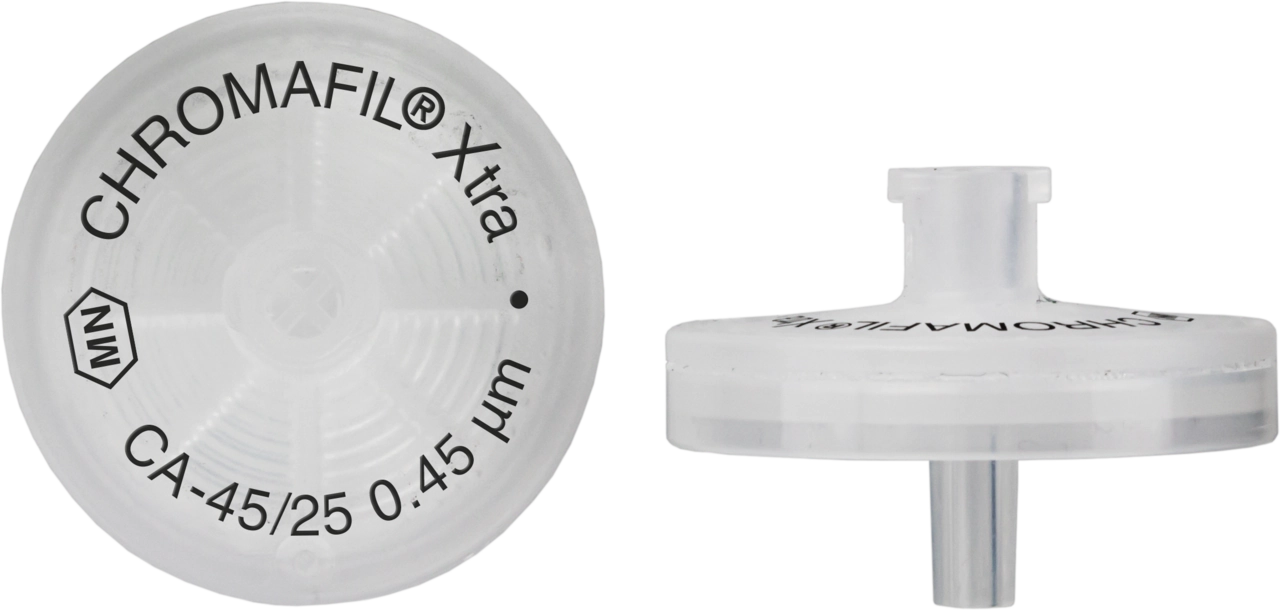

Syringe filter, labeled, CHROMAFIL Xtra CA, 0.45 µm

Syringe filter, labeled, CHROMAFIL Xtra CA, 0.45 µm
Product configuration

Selling unit

Do you have any questions?
Please contact us.
Select variant first $0.00 * (0% Saved)

*taxes and shipping not included

Item number: 729227 02201022403010
Package unit 100 Piece(s)
Quantity:
Technical data Certificates of analysis (CoA / CoC) Downloads
Technical data
Inside the syringe filter cellulose acetate is used as membrane material. The hydrophilic CA... more
Close menu

Inside the syringe filter cellulose acetate is used as membrane material. The hydrophilic CA membrane is suitable for filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules with very high shape stability in aqueous solutions. Extremely low binding capacity for proteins. In a sterile package (S) for filtration under sterile conditions (each filter is color coded and individually sealed). All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Selling unit 100 pieces, 400 pieces
Method Filtration
Brand CHROMAFIL Xtra
Type Syringe filter, labeled
Housing type Wheel-like shaped housing
Hardware Polypropylene (PP) housing with filter membrane
Membrane type Cellulose acetate (CA)
Membrane properties Hydrophilic
Filter type 25 mm
Effective membrane diameter* 22 mm
Membrane pore size 0.45 µm
Code type Labeled
Color code (top) Labeled
Color code (bottom) Colorless
Inlet Luer lock (top)
Outlet Luer tip (bottom)
Sample volume 5-100 mL
Recommended application(s) Filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules, Suitable for HPLC columns packed with particles > 3 µm, GC, SFC
Sterile No
Binding capacity (proteins) Very low (21 µg / 25 mm)
Dead volume 80 µL
Effective filtration area* 3.8 cm²
Storage temperature 15–25 °C / 59–77 °F
Hazardous material No
Remark *Standardized measurement since Mai 2023. The product has not been modified.
Certificates of analysis (CoA / CoC)
Close menu
No certificate matching the given LOT number found!
Please contact us via E-mail where you specify REF- and LOT-Number.
Downloads
Close menu
Related products Accessories
Related products
Syringe filter, labeled, CHROMAFIL Xtra CA, 0.2 µm Syringe filter, labeled, CHROMAFIL Xtra CA, 0.2 µm
Content 100 Piece(s)
REF 729226
$

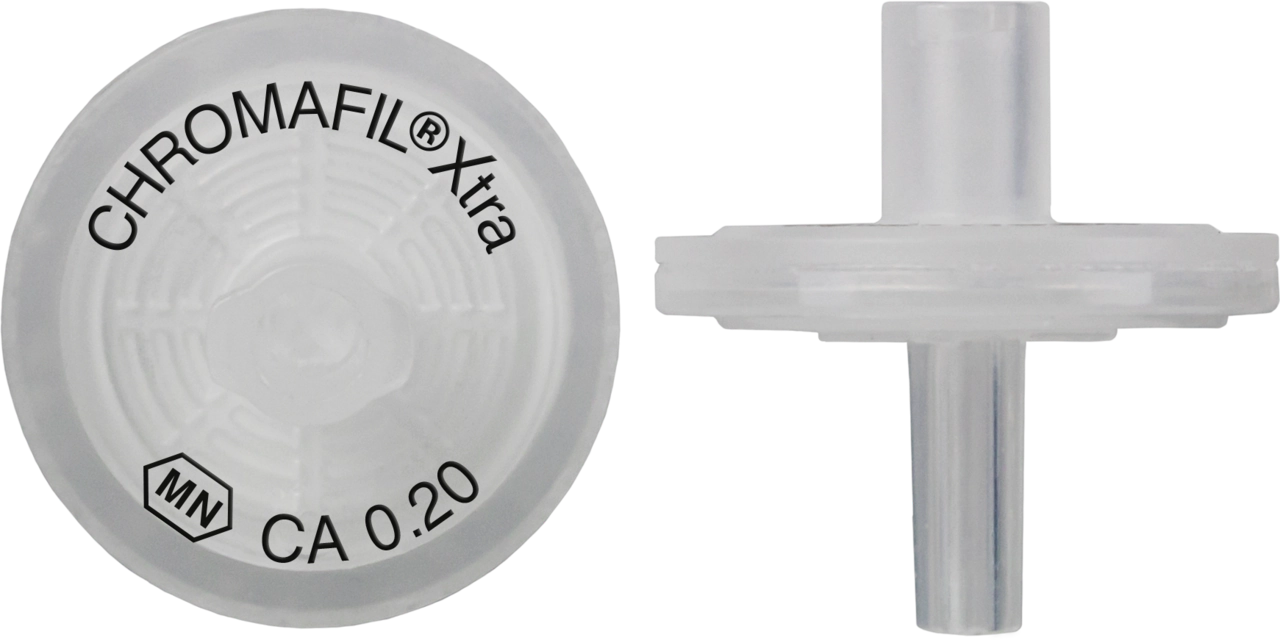

Syringe filter, labeled, CHROMAFIL Xtra CA, 0.2 µm Syringe filter, labeled, CHROMAFIL Xtra CA, 0.2 µm
Content 100 Piece(s)
REF 729254
$
Syringe filter, labeled, CHROMAFIL Xtra CA, 0.45 µm Syringe filter, labeled, CHROMAFIL Xtra CA, 0.45 µm
Content 100 Piece(s)
REF 729255
$

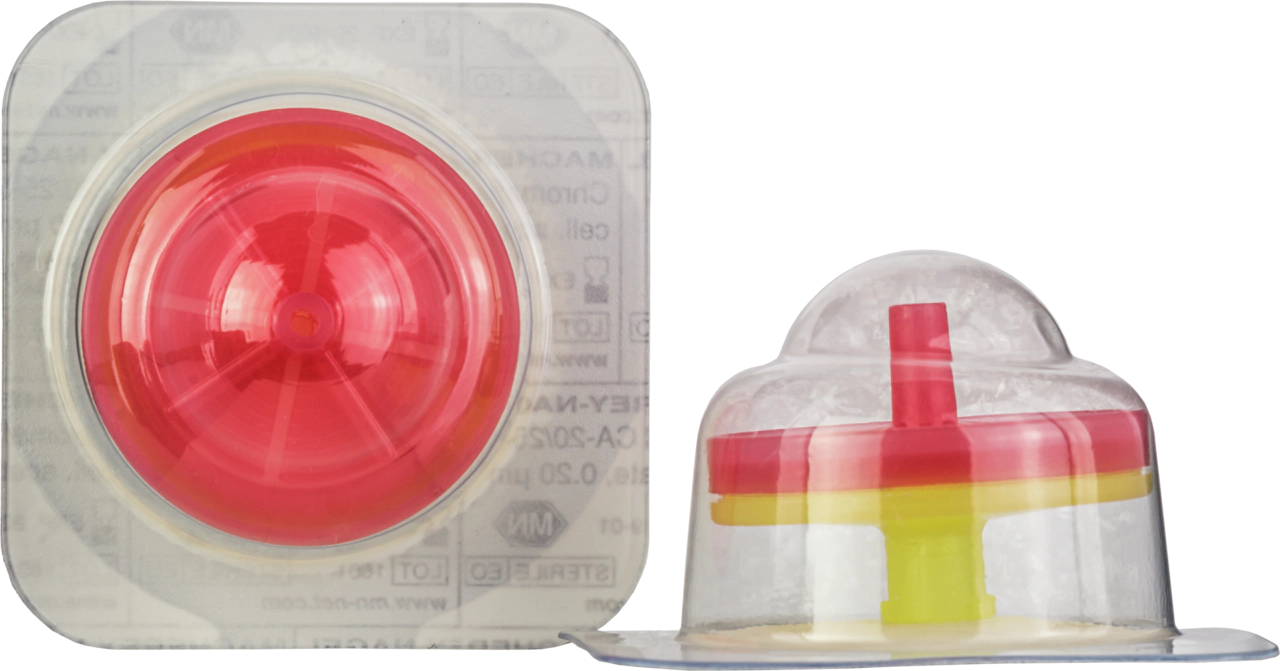

Syringe filter, sterile, CHROMAFIL CA, 0.2 µm Syringe filter, sterile, CHROMAFIL CA, 0.2 µm
Content 50 Piece(s)
REF 729024
$

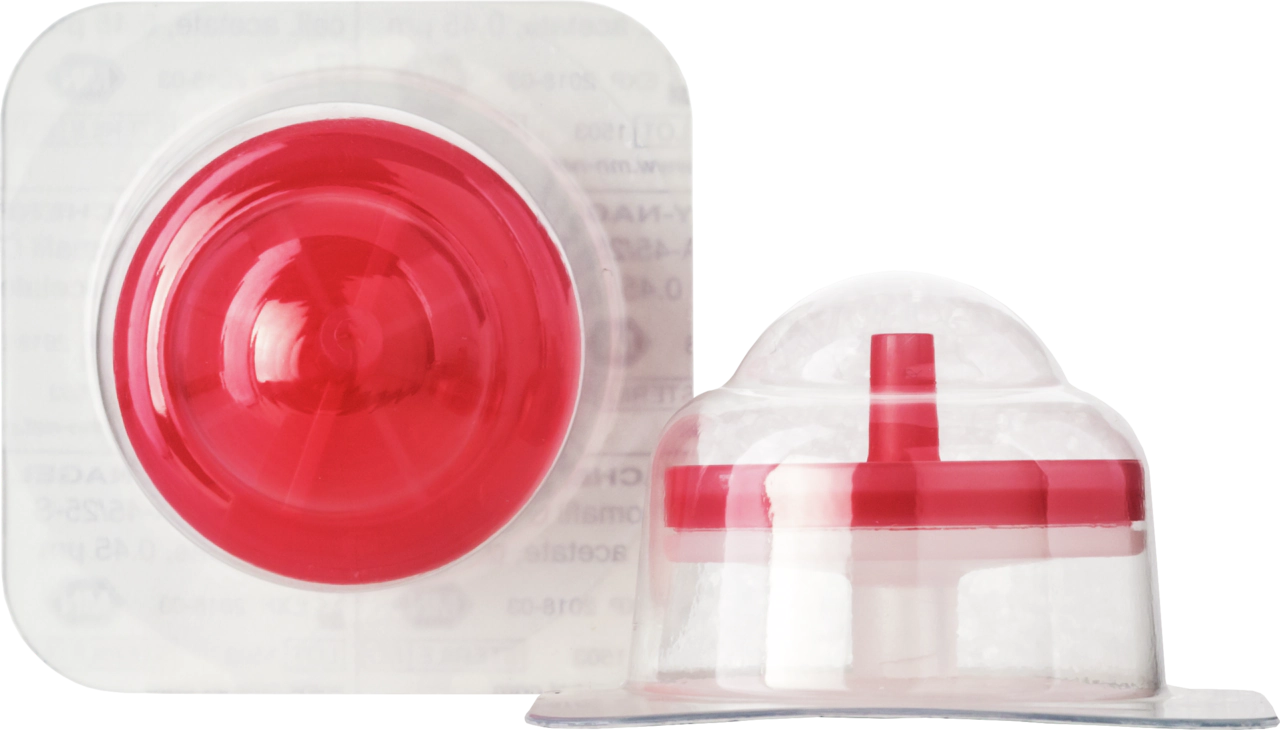

Syringe filter, sterile, CHROMAFIL CA, 0.45 µm Syringe filter, sterile, CHROMAFIL CA, 0.45 µm
Content 50 Piece(s)
REF 729025
$

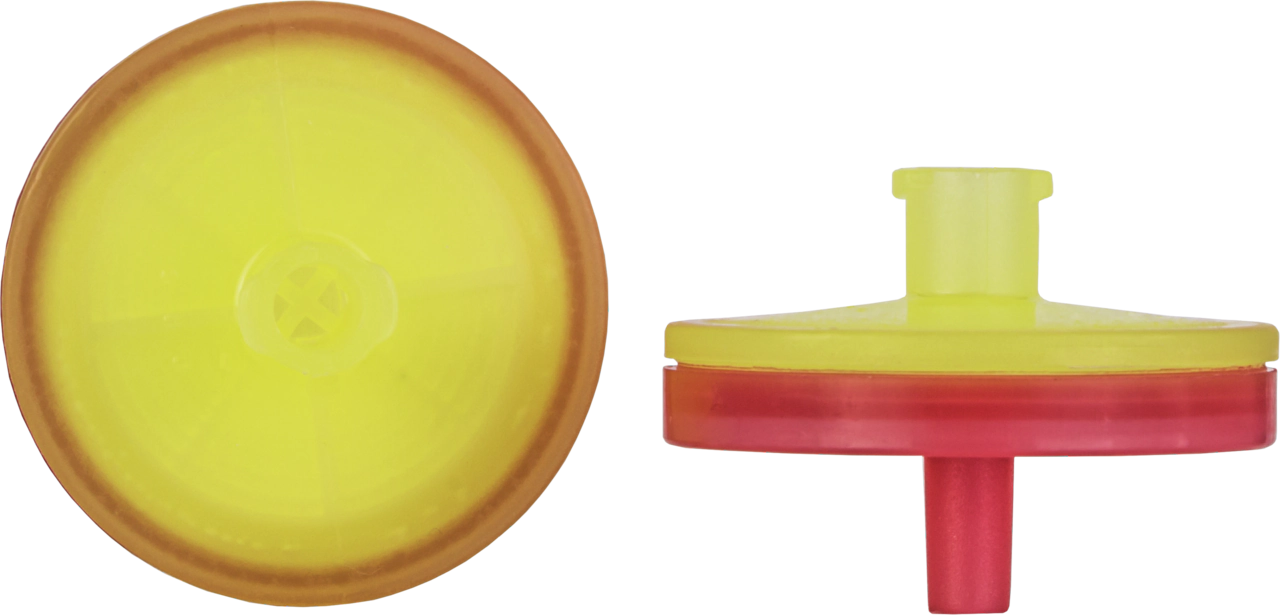

Syringe filter, color coded, CHROMAFIL CA, 0.2 µm Syringe filter, color coded, CHROMAFIL CA, 0.2 µm
Content 100 Piece(s)
REF 729026
$

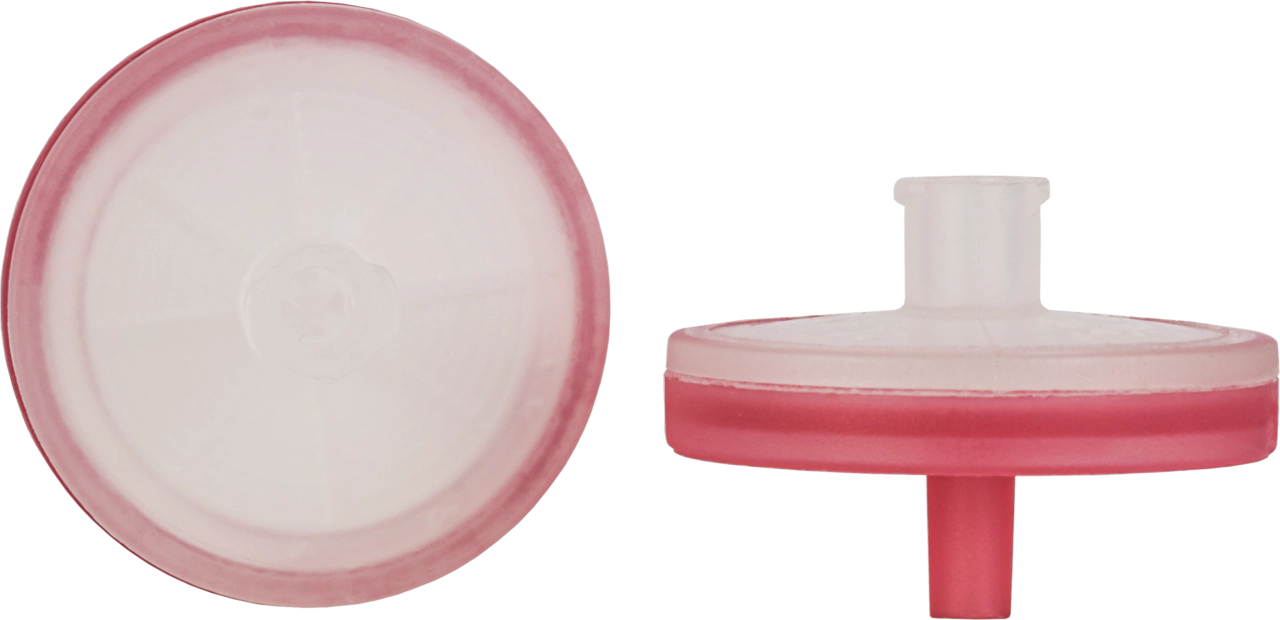

Syringe filter, color coded, CHROMAFIL CA, 0.45 µm Syringe filter, color coded, CHROMAFIL CA, 0.45 µm
