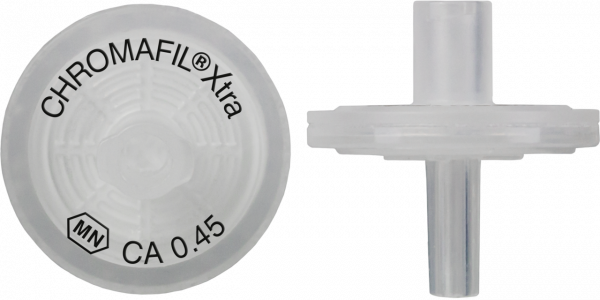

Syringe filter, labeled, CHROMAFIL Xtra CA, 0.45 µm

Syringe filter, labeled, CHROMAFIL Xtra CA, 0.45 µm
$129.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 729255 02201022403010
Package unit 100 Piece(s)
Quantity:
Do you have any questions?
Please contact us.
Technical data Certificates of analysis (CoA / CoC) Downloads
Technical data
Inside the syringe filter cellulose acetate is used as membrane material. The hydrophilic CA... more
Close menu

Inside the syringe filter cellulose acetate is used as membrane material. The hydrophilic CA membrane is suitable for filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules with very high shape stability in aqueous solutions. Extremely low binding capacity for proteins. Labeled for method validation and certification. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Method Filtration
Brand CHROMAFIL Xtra
Type Syringe filter, labeled
Housing type Wheel-like shaped housing
Hardware Polypropylene (PP) housing with filter membrane
Membrane type Cellulose acetate (CA)
Membrane properties Hydrophilic
Filter type 13 mm
Effective membrane diameter* 15.6 mm
Membrane pore size 0.45 µm
Code type Labeled
Color code (top) Labeled
Color code (bottom) Colorless
Inlet Luer lock (top)
Outlet Luer tip (bottom)
Sample volume 1 ≤ 5 mL
Recommended application(s) Filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules, Suitable for HPLC columns packed with particles > 3 µm, GC, SFC
Sterile No
Binding capacity (proteins) Very low (21 µg / 25 mm)
Dead volume 30 µL
Effective filtration area* 1.9 cm²
Storage temperature 15–25 °C / 59–77 °F
Packaging dimensions 110 x 110 x 105 mm / 4.33 x 4.33 x 4.13 Inch
Gross weight (incl. packaging) 205 g / 0.45 lbs
Hazardous material No
Remark *Standardized measurement since Mai 2023. The product has not been modified.
Certificates of analysis (CoA / CoC)
Close menu
No certificate matching the given LOT number found!
Please contact us via E-mail where you specify REF- and LOT-Number.
Downloads
Close menu
